Details Explained

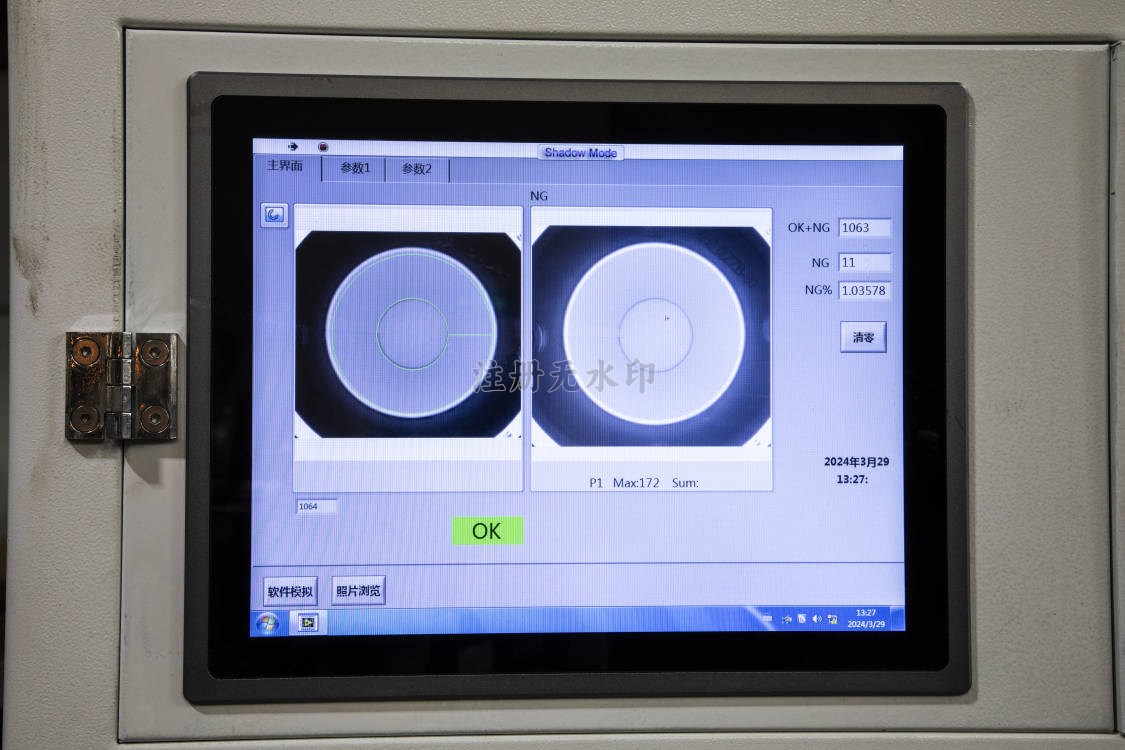

Control panel use touch screen, a clearer yision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance

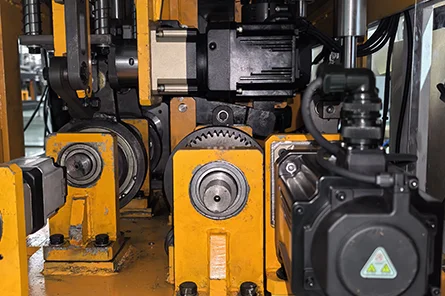

We use servo motor instead of traditional mechanical design, which will make machine higher speed and high precision, also smaller noise.

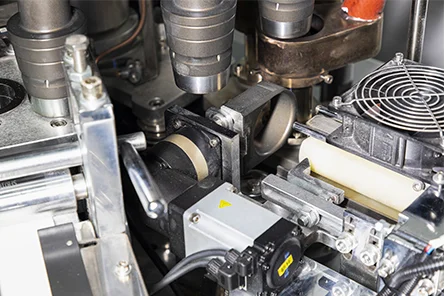

High-power servo motor make paper fan and bottom paper feeding and collect more accurately.

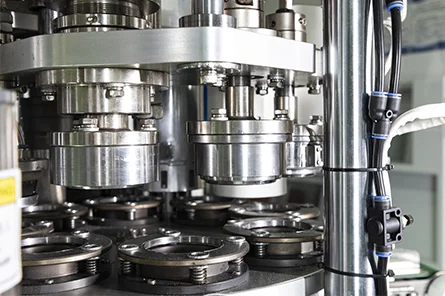

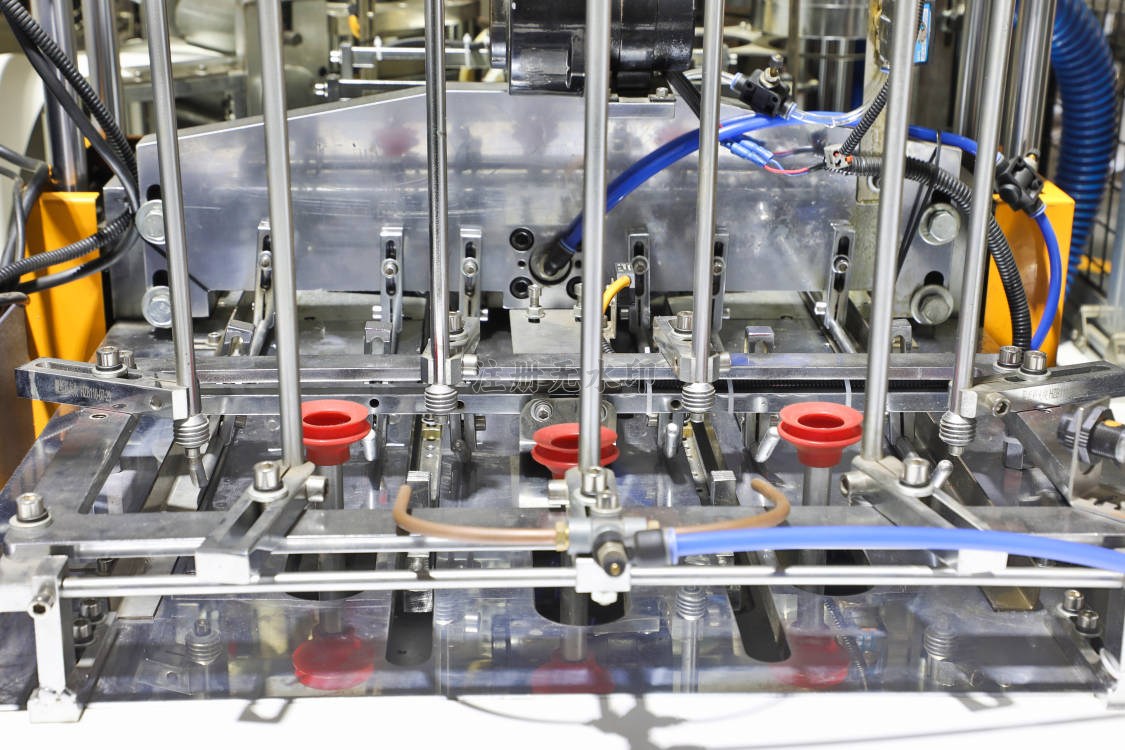

The machine has three stations for curling, makes the curling of the cup more beautiful at high running speed and increase the stability of curling quality.

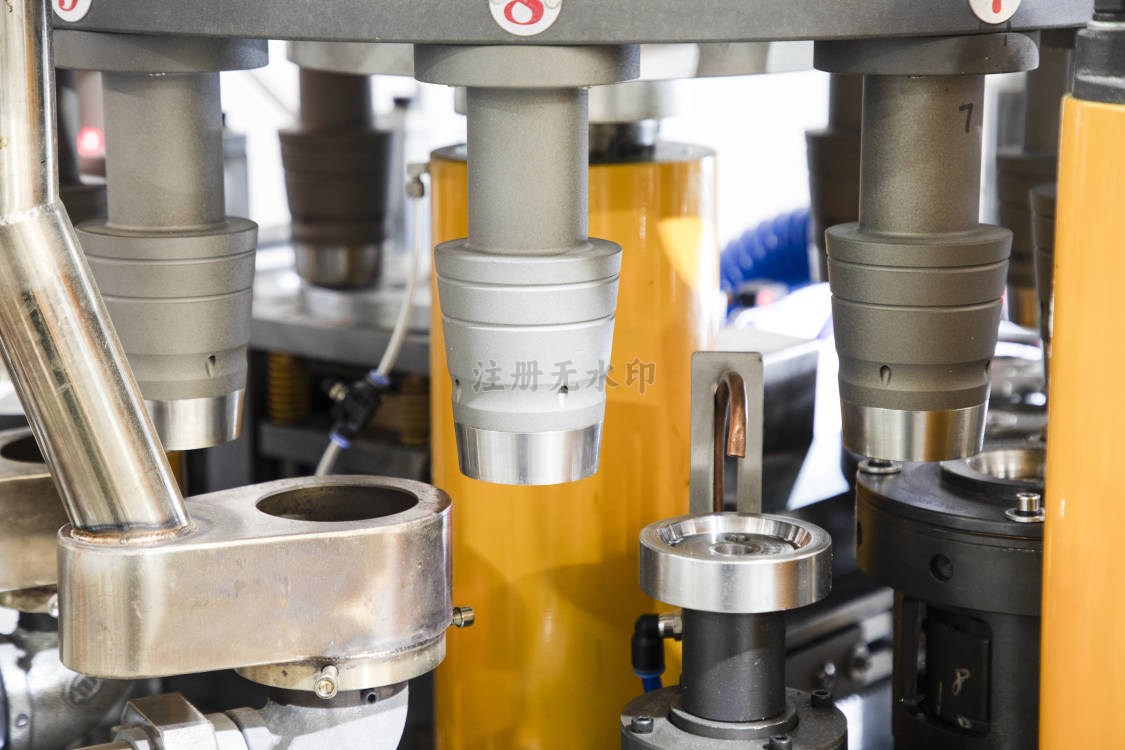

The hot air heating system makes the bottom seal perfect.

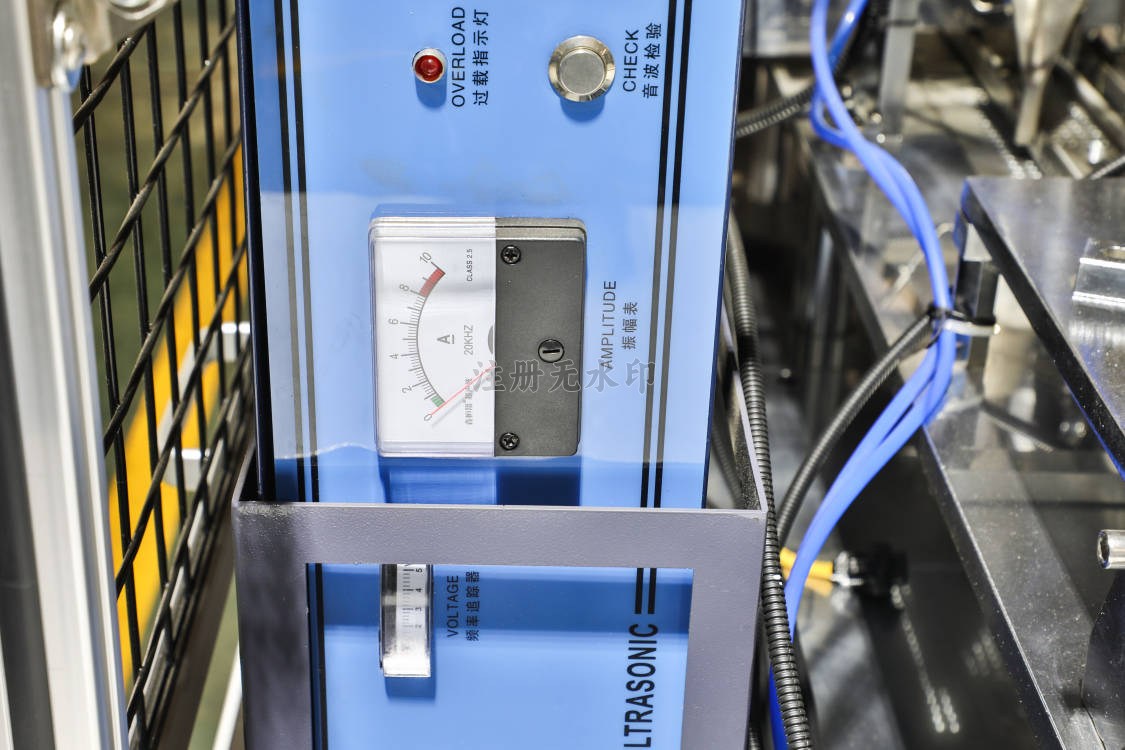

The whole machine adopts imported electrical configuration, with strong versatility, excellent performance and convenient equipment maintenance.

High-power servo motor make bottom paper feeding and collect more accurately.

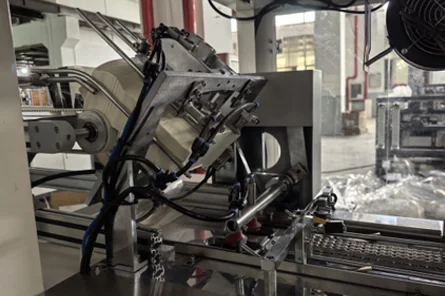

The machine includes the automatic paper feeding system, when the sensor can’t catch the paper fan, it will transmit a signal, when the system will feed paper fan automatically.

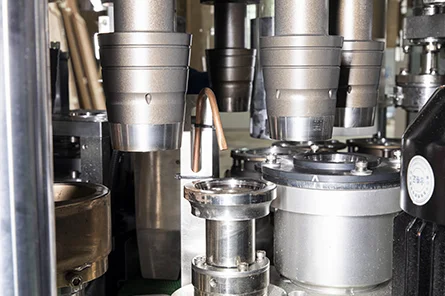

Adopt hot air heating system, short bottom sealing time andhigh sealing quality.

Parameters

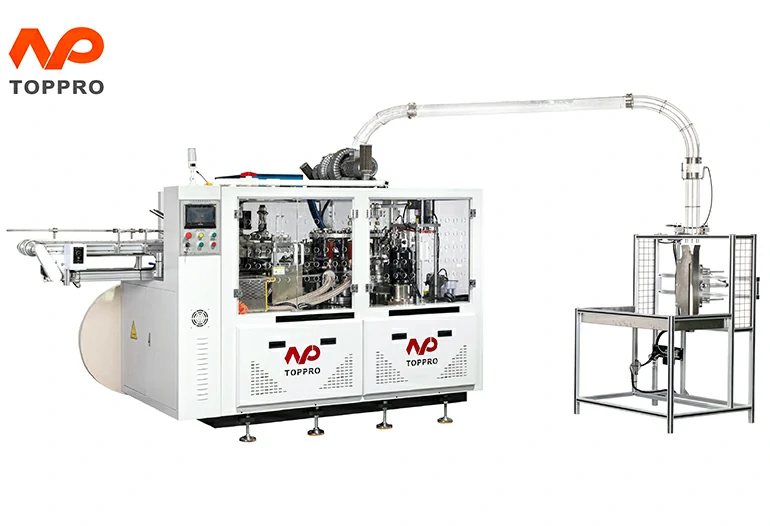

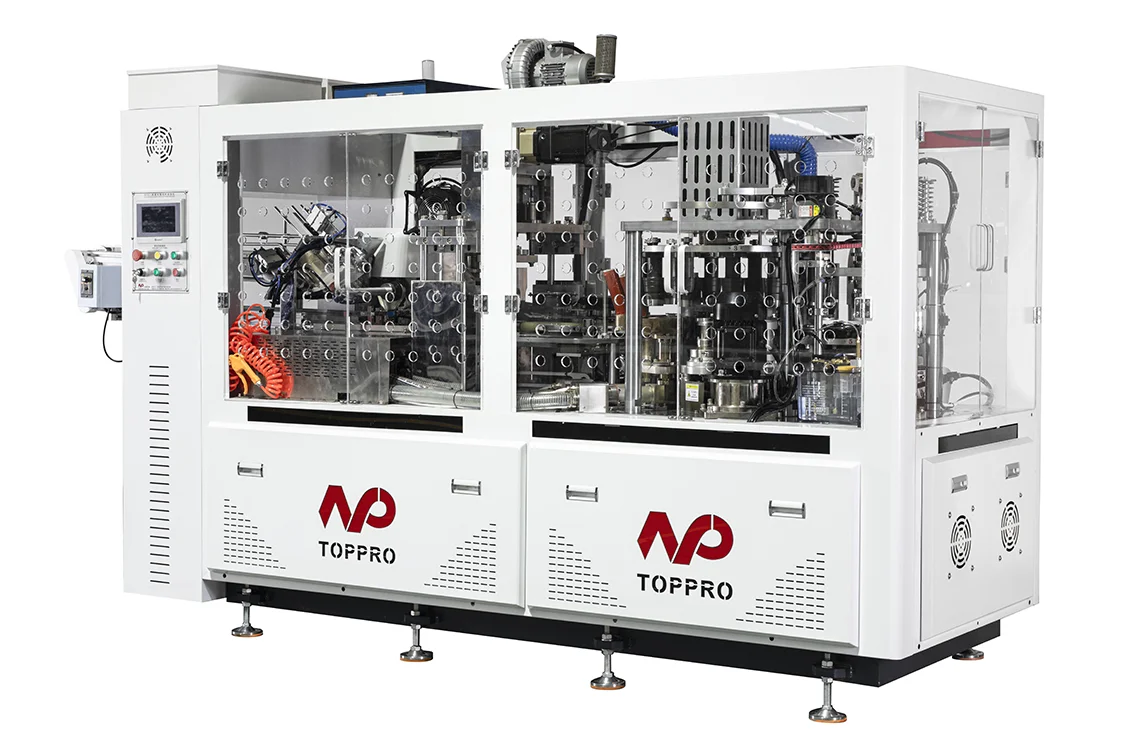

Name	Full Servo Motor Paper Cup Machine
HS Code	8441309000
Model	SFBJ-160
The machine includes: Finished cup Collect System
Paper cup Size	A=70mm-95mm	B=48mm-70mm
	C=60mm-135mm	D=5mm-10mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	160-200pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	190-350gsm
Voltage supply	380v50hz 3-phase *If user’s voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	28kw
Net weight	3500kgs
Measurement (mm)	300015502000
Cup Side Sealing	Ultrasonic sealing
We can customize machine and mold according to customer’s requirement.

After-sales

Remarks

Above prices are given on T/T payment, and needs extra USD500/shipment for L/C Payment.
Port of Loading: NINGBO, CHINA
Terms of Price: FOB NINGBO
Payment Terms: T/T Payment (30% As Deposit, 70% Before Delivery), or L/C
Lead time: 30 days after receiving the deposit
Packaging: Seaworthy woodencase packing

After-sale service

1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

(a) We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

(b) If the technicians are asked to install machine and training the workers at buy’s factory , the buyer should pay all fees.

3. Training of buyer in China:

(a) We supply the free training of buyer at our factory, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.

4. We supply the consumable spare parts for free for one years use.

Warranty

We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.

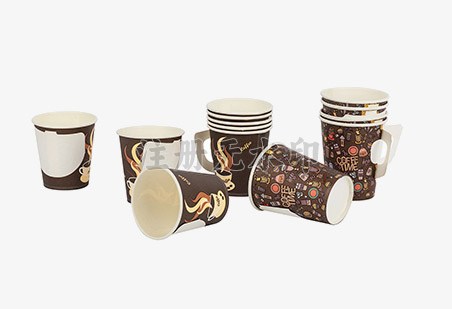

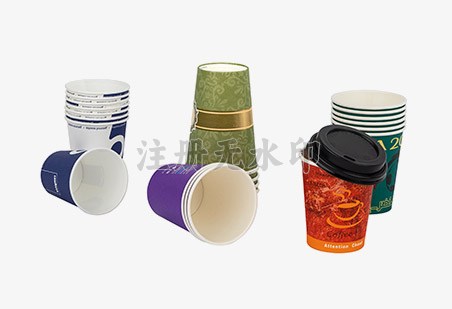

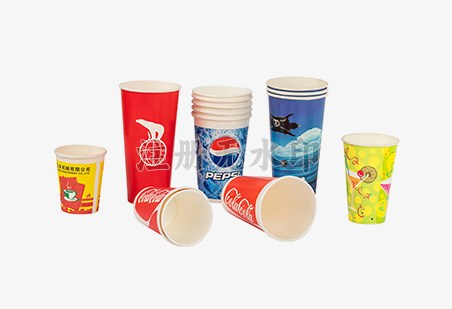

Sample Display

Intelligent Paper Cup Machine
